Compare ETI Key Switch Specifications
Review detailed specification sheets for ETI’s full line of Interchangeable Core Key Switch Controls. Each model includes clear technical data—such as switch type, contact rating, waterproof rating, key rotation, and mounting format—making it easy to compare options side by side. Compatible with major IC core formats (Best, Schlage, Sargent, Corbin, Medeco), these switches are designed for applications including lighting, HVAC, security access, gate control, and equipment shutdown.
Use this page to find the model that fits your project’s exact requirements.
IC Format Inter Changeable-Core Cylinder

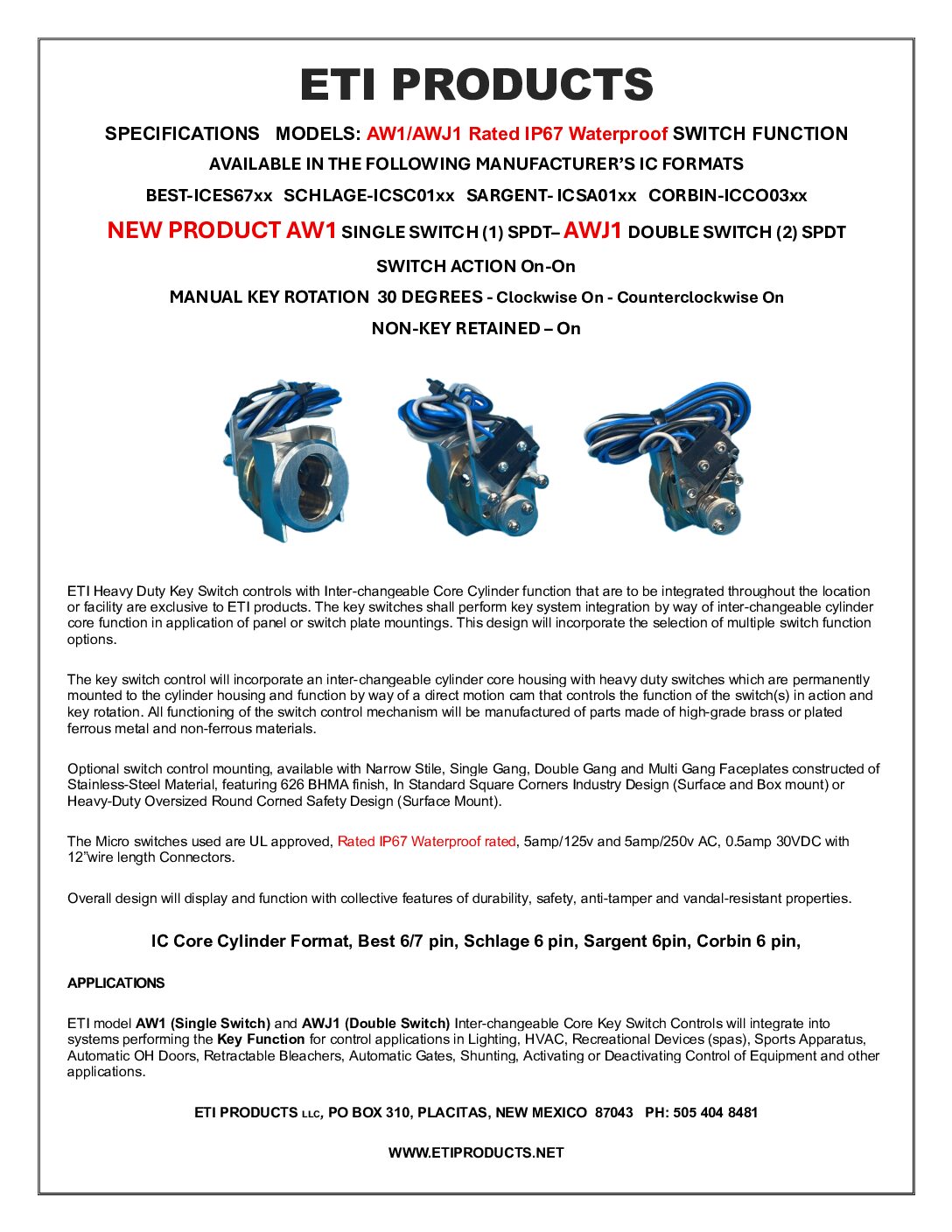

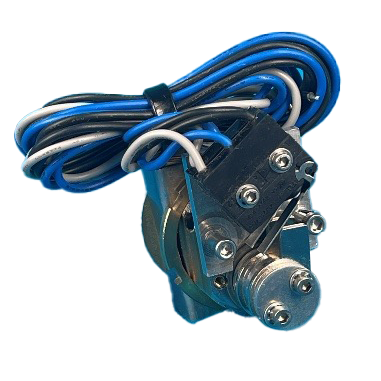

AW1/AWJ1 (2 switch)
AVAILABLE IN THE FOLLOWING MANUFACTURER’S IC FORMATS
SWITCH WATERPROOF: BEST-ICES67AW1 SCHLAGE-ICSC01AW1 SARGENT- ICSA02AW1 CORBIN-ICCO03AW1
2 SWITCH WATERPROOF: BEST-ICES67AWJ1 SCHLAGE-ICSC01AWJ1 SARGENT- ICSA02AWJ1 CORBIN-ICCO03AWJ1
SWITCH TYPE
SPDT
(Single pole - Double Throw)
IP67 WATERPROOF
12" Wire Length
CONTACT RATING
5a 125/250v AC, .5a 30v DC
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA 626
KEY ROTATION
30 DEGREES ROTATION On
Manual Rotation and Return
NON KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION AW1/AWJ1 (2 switch)
ETI model AW1/AWJ1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Maintained On-On with 30° clockwise Rotation with SPDT Switch IP67 Waterproof Rating Contact Rating 5a 125/250v AC, 0.0.5A 30v DC.
12" wire length for control applications in Shunting, Activating or Deactivating Control.

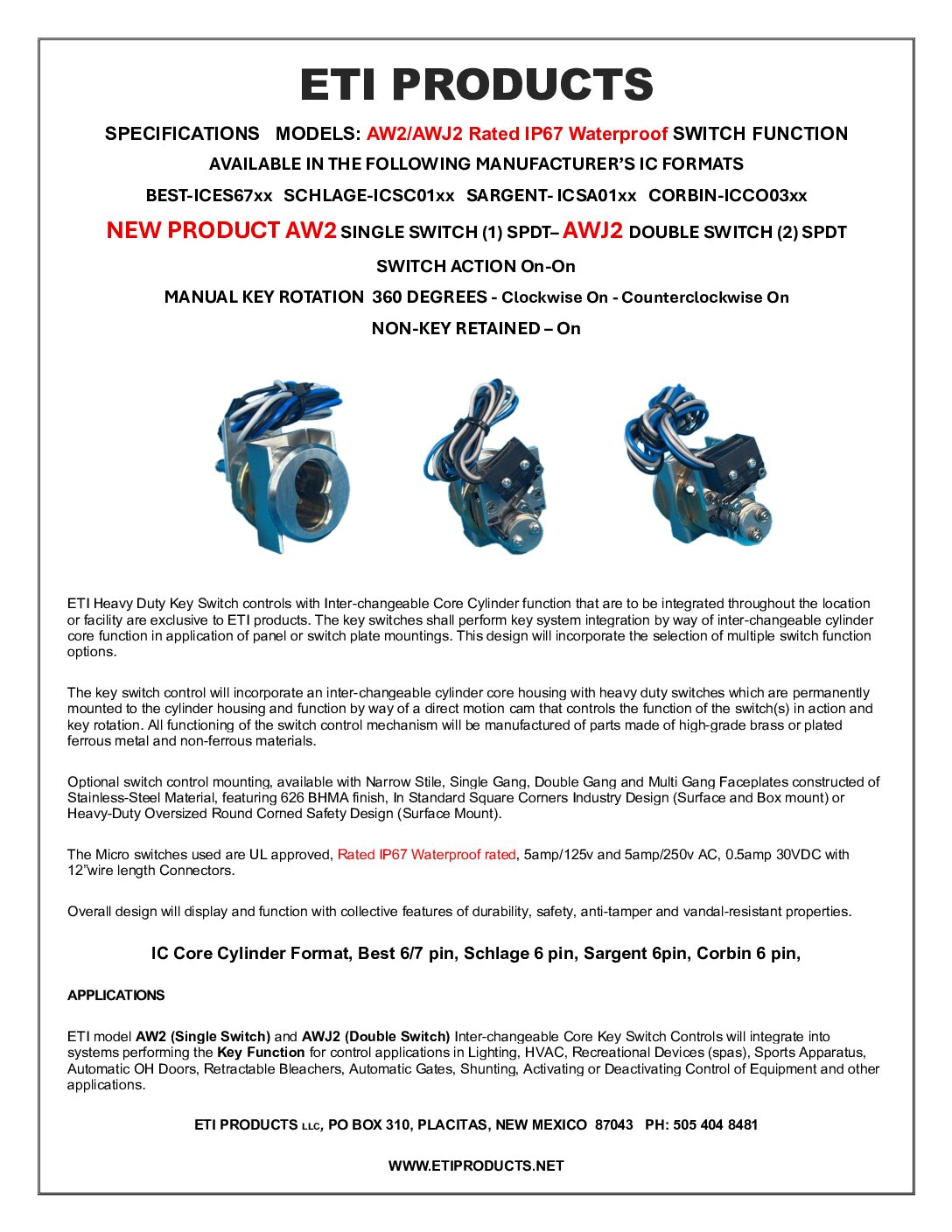

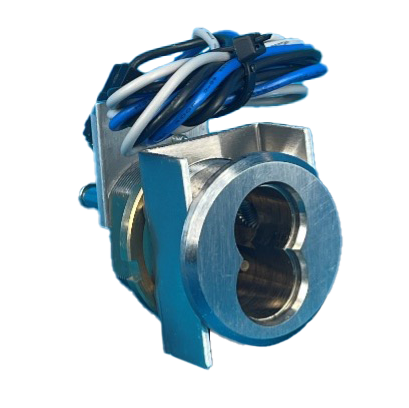

AW2/AWJ2 (2 switch)
AVAILABLE IN THE FOLLOWING MANUFACTURER’S IC FORMATS
SWITCH WATERPROOF: BEST-ICES67AW2 SCHLAGE-ICSC01AW2 SARGENT- ICSA02AW2 CORBIN-ICCO03AW2
2 SWITCH WATERPROOF: BEST-ICES67AWJ2 SCHLAGE-ICSC01AWJ2 SARGENT- ICSA02AWJ2 CORBIN-ICCO03AWJ2
SWITCH TYPE
SPDT
(Single pole - Double Throw)
IP67 WATERPROOF
12" Wire Length
CONTACT RATING
5a 125/250v AC, .5a 30v DC
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA 626
KEY ROTATION
45 DEGREE ROTATION DETENT- On
KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION T1 (3 switch)
ETI model AW2/AWJ2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Maintained On-On with 360° clockwise Rotation with SPDT Switch IP67 Waterproof Rating Contact Rating 5a 125/250v AC, 0.0.5A 30v DC.
12" wire length for control applications in Shunting, Activating or Deactivating Control.

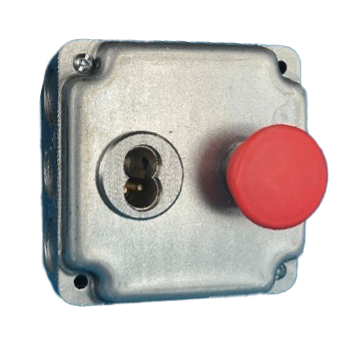

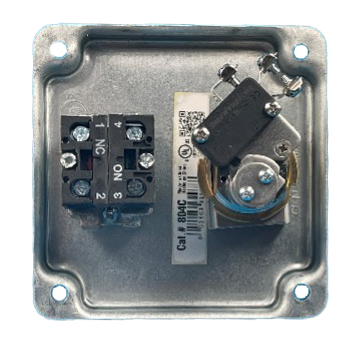

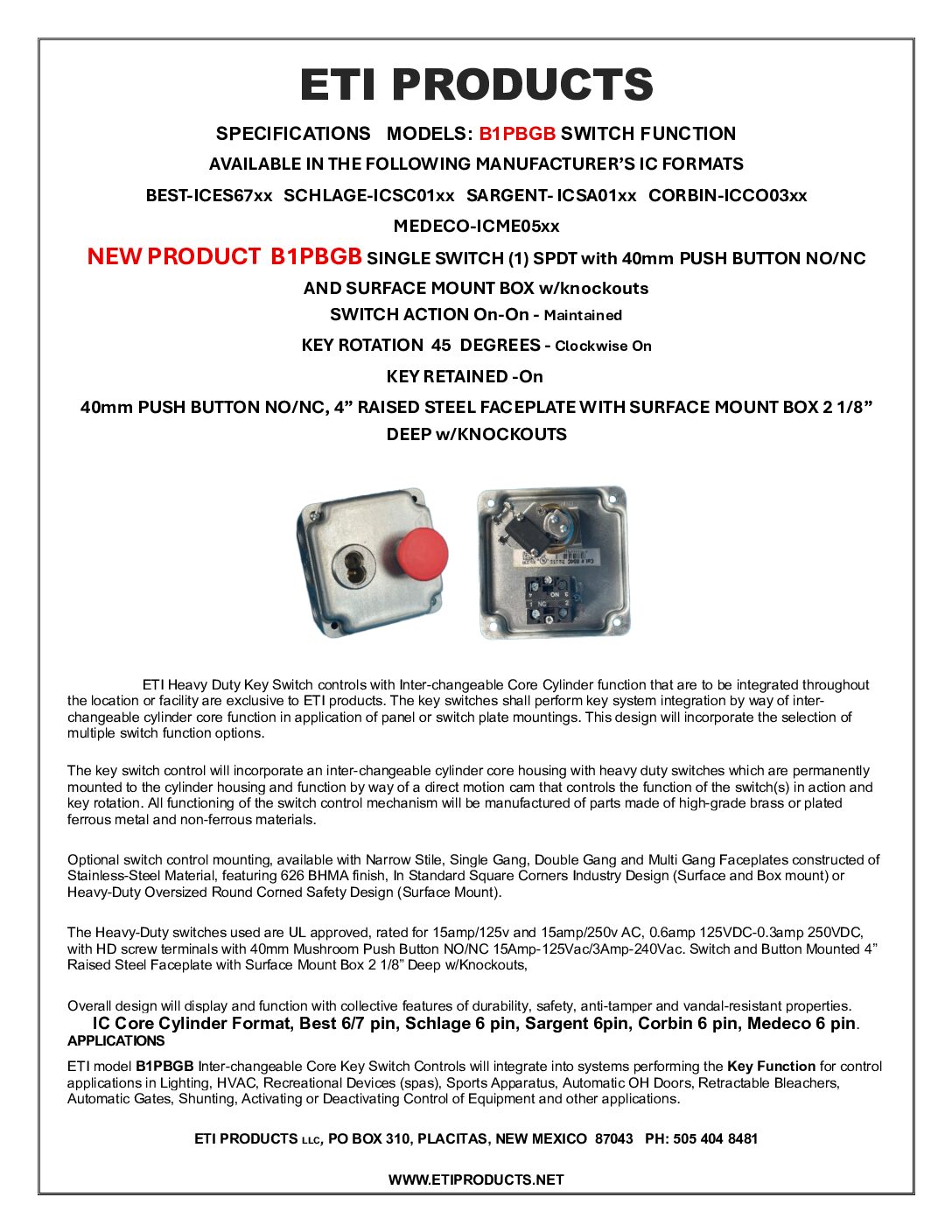

B1PBDG
AVAILABLE IN THE FOLLOWING MANUFACTURERS' IC FORMATS
BEST-ICES67B1PBDG SCHLAGE-ICSC01B1PBDG SARGENT- ICSA02B1PBDG CORBIN-ICCO03B1PBDG MEDECO- ICME05B1PBDG
SWITCH TYPE
(2)-SPDT
(Single throw Double Pole)
Rocker Switch
CONTACT RATING
15a 125v/250v AC
0.6/0.30v DC
PUSHBUTTON
40mm Mushroom Monetary
No/ Nc 15a/125 AC
3a/250v AC
SWITCH ACTION
Maintained
on-on
MOUNTING
4" Raised Steel Faceplate
Surface Mount Box
2 1/8" deep w/Knockouts
KEY ROTATION
45 Degrees-Clockwise-On
KEY RETAINED
PANEL MOUNT PREPARATIONS
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION B1PBDG
ETI model B1PBDG Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
30 Degrees-Clockwise - 30 Degrees Counter clockwise with DPST Rocker Switch, 30a 125-277v AC.
Suitable for control applications in shunting, activating, or deactivating control.

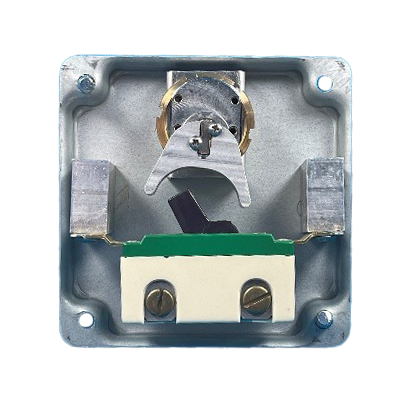

C2DG
AVAILABLE IN THE FOLLOWING MANUFACTURERS' IC FORMATS
BEST-ICES67C2DG SCHLAGE-ICSC01C2DG SARGENT- ICSA02C2DG CORBIN-ICCO03C2DG MEDECO- ICME05C2DG
SWITCH TYPE
DPST
(Double pole - Double Throw)
Rocker Switch
CONTACT RATING
30A-120-277v AC
Commerical
Light Switch
SWITCH ACTION
Maintained
on-off
MOUNTING
4" Raised Steel Faceplate
Surface Mount Box
2 1/8" deep w/Knockouts
KEY ROTATION
30 Degrees-Clockwise-On
30 Degrees-Counterclockwise -OFF
NON KEY RETAINED
PANEL MOUNT PREPARATIONS
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION C2DG
ETI model TC2DG Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
30 Degrees-Clockwise - 30 Degrees Counter clockwise with DPST Rocker Switch, 30a 125-277v AC.
Suitable for control applications in shunting, activating, or deactivating control.

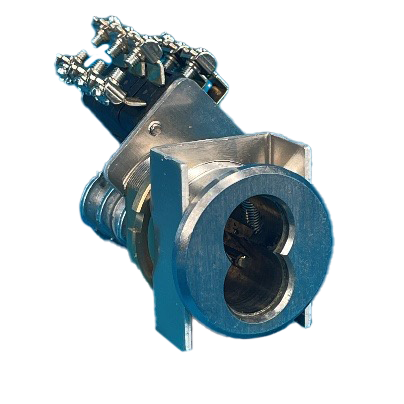

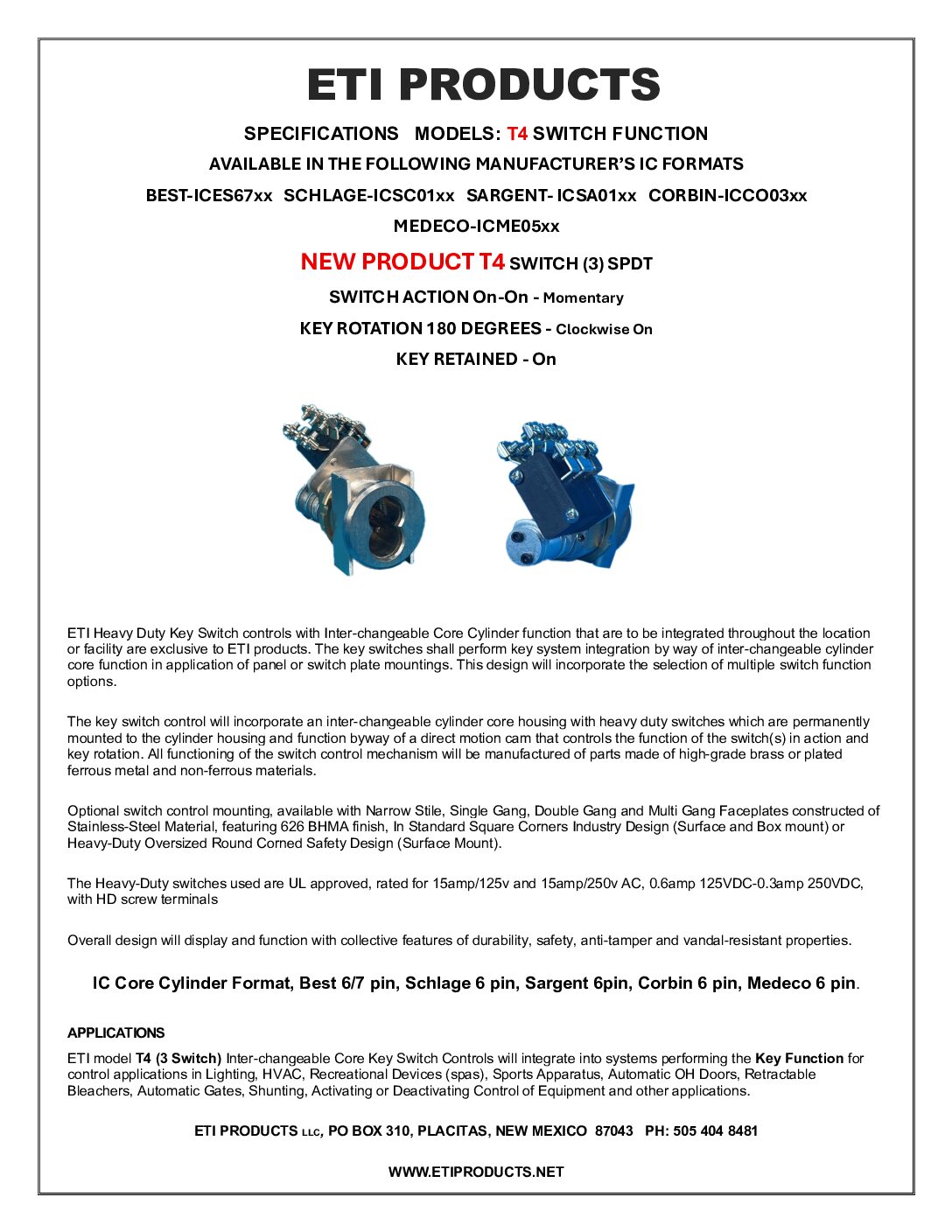

T4
AVAILABLE IN THE FOLLOWING MANUFACTURERS' IC FORMATS
TRIPLE SWITCH: BEST-ICES67T4 SCHLAGE-ICSC01T4 SARGENT- ICSA02T4 CORBIN-ICCO03T4 MEDECO- ICME05T4
SWITCH TYPE
(3) SPDT
(Single pole - Double Throw)
CONTACT RATING
15a125v/250v AC, 0,6a 125v DC
0.3A 250v DC
SWITCH ACTION
Maintained
on-on
FINISHES
BHMA 626
KEY ROTATION
180 DEGREES ROTATION DETENT-On
KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION T4 (3 switch)
ETI model T4 Interchangeable Core Key Switch Controls will integrate into systems performing the Switch Action.
Maintained On-On with 180° clockwise rotation, featuring 3-SPDT switch contact ratings of 15A 125/250V AC and 0.6A 125V, 0.3A 250V DC.
Suitable for control applications in shunting, activating, or deactivating control.

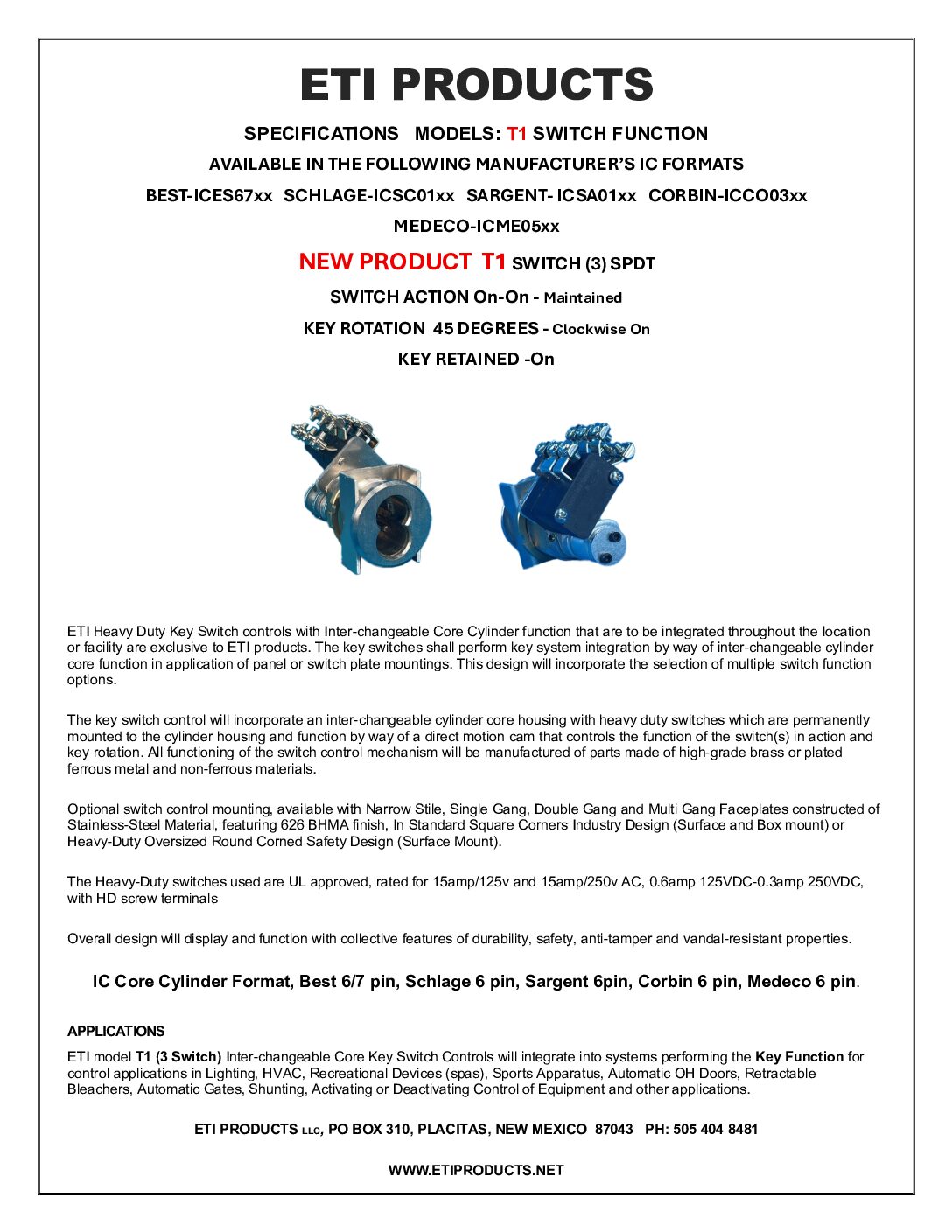

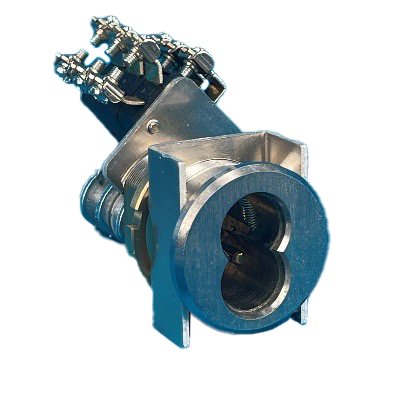

T1
AVAILABLE IN THE FOLLOWING MANUFACTURER’S IC FORMATS
TRIPLE SWITCH: BEST-ICES67T1 SCHLAGE-ICSC01T1 SARGENT- ICSA02T1 CORBIN-ICCO03T1 MEDECO- ICME05T1
SWITCH TYPE
(3) SPDT
(Single pole - Double Throw)
CONTACT RATING
15a125v/250v AC, 0,6a 125v DC
0.3A 250v DC
SWITCH ACTION
Maintained
on-on
FINISHES
BHMA 626
KEY ROTATION
DETENT-On
KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION AW2/AWJ2 (2 switch)
ETI model T1 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Maintained On-On with 45° clockwise Rotation with 3-SPDT Switch Contact Rating 15a 125/250v AC , 0.6a 125v-o.3 250v DC.
for control applications in Shunting, Activating or Deactivating Control.

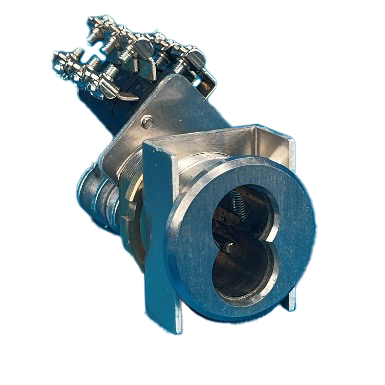

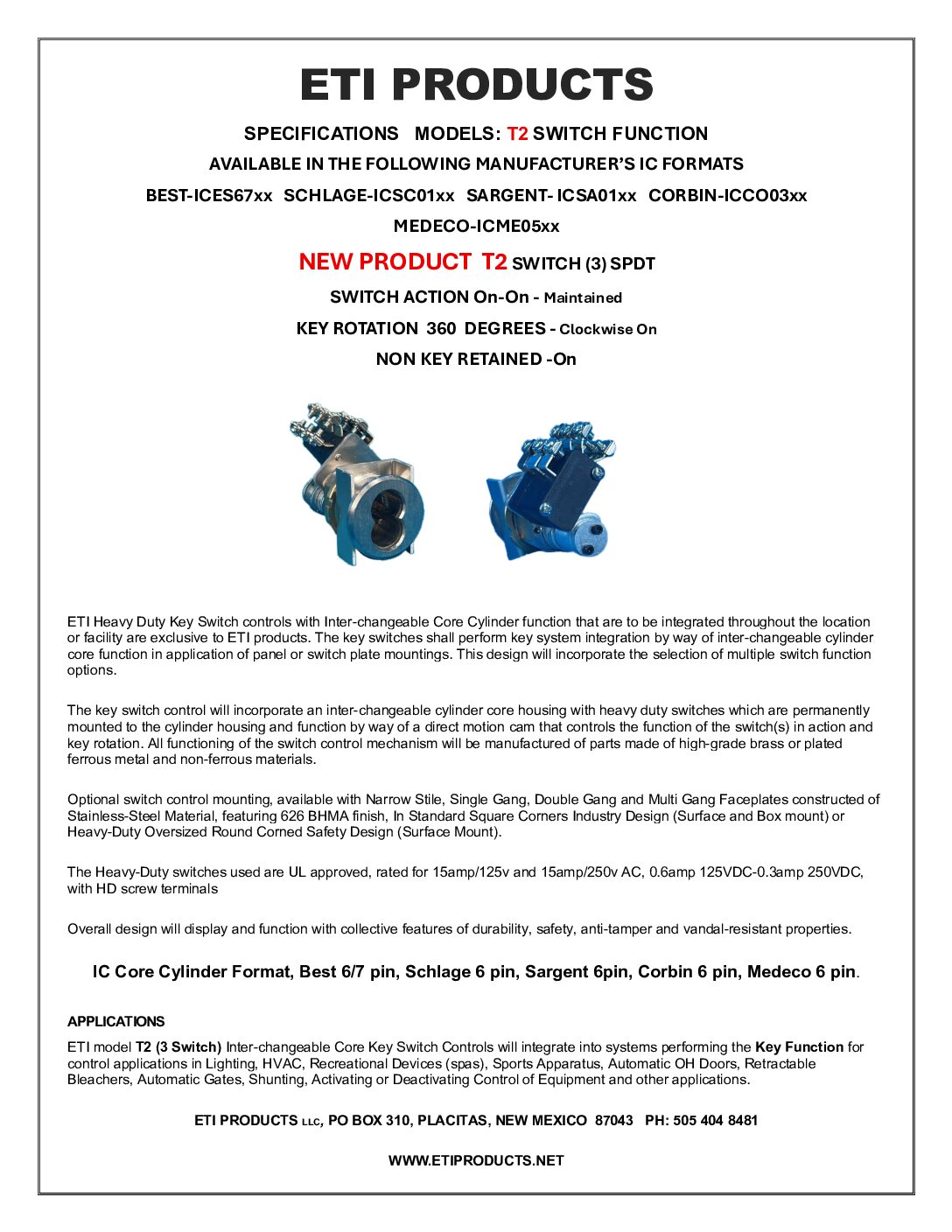

T2
AVAILABLE IN THE FOLLOWING MANUFACTURER’S IC FORMATS
TRIPLE SWITCH: BEST-ICES67T12 SCHLAGE-ICSC01T2 SARGENT- ICSA02T2 CORBIN-ICCO03T2 MEDECO- ICME05T2
SWITCH TYPE
(3) SPDT
(Single pole - Double Throw)
CONTACT RATING
15a125v/250v AC, 0,6a 125v DC
0.3A 250v DC
SWITCH ACTION
Momentary (spring assist)
on-on
FINISHES
BHMA 626
KEY ROTATION
30 DEGREES ROTATION -On
NON KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION T2 (3 switch)
ETI model T2 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Maintained On-On with 360° clockwise Rotation with 3-SPDT Switch Contact Rating 15a 125/250v AC, 0.6a 125v-o.3 250v DC.
for control applications in Shunting, Activating or Deactivating Control.

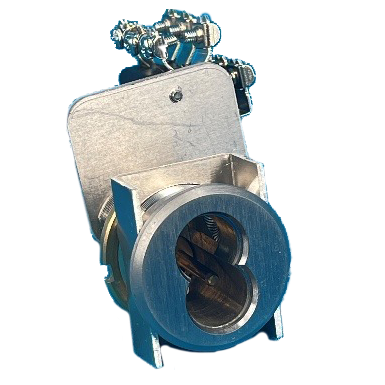

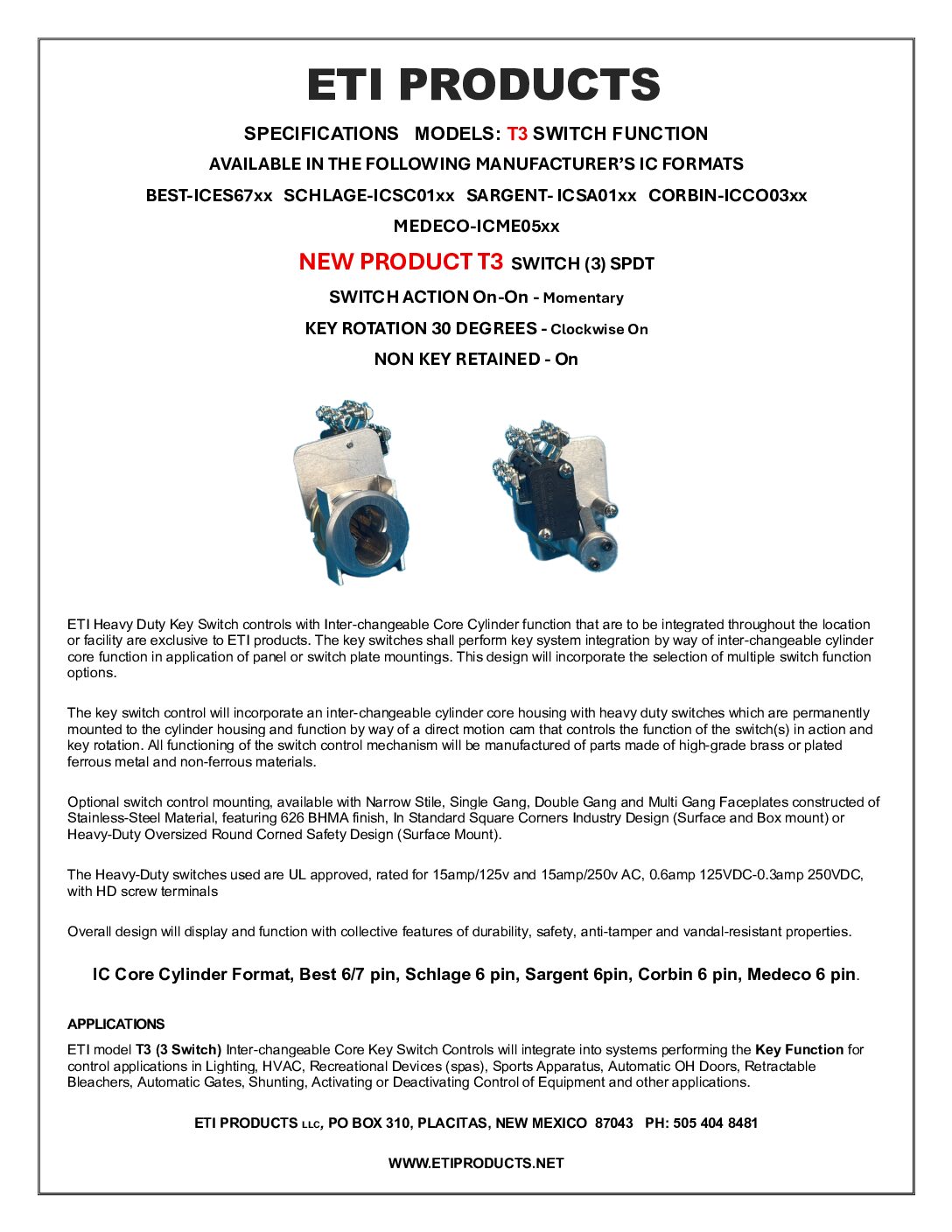

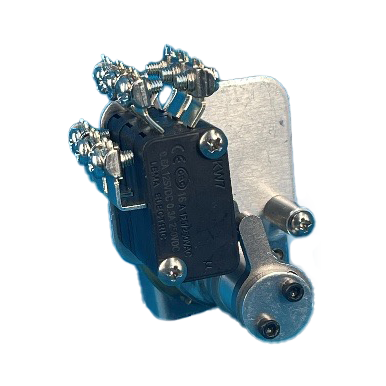

T3
AVAILABLE IN THE FOLLOWING MANUFACTURER’S IC FORMATS
TRIPLE SWITCH: BEST-ICES67T4 SCHLAGE-ICSC01T4 SARGENT- ICSA02T4 CORBIN-ICCO03T4 MEDECO- ICME05T4
SWITCH TYPE
(3) SPDT
(Single pole - Double Throw)
CONTACT RATING
15a125v/250v AC, 0,6a 125v DC
0.3A 250v DC
SWITCH ACTION
Momentary (spring assist)
on-on
FINISHES
BHMA 626
KEY ROTATION
30 DEGREES ROTATION -On
NON KEY RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style
1-5/16"dia by .950 (flat width) Double "D" Design
APPLICATION T3 (3 switch)
ETI model T3 Inter-changeable Core Key Switch Controls will integrate into systems performing the Switch Action
Momentary On-On with 30° clockwise Rotation with 3-SPDT Switch Contact Rating 15a 125/250v AC, 0.6a 125v-o.3 250v DC.
for control applications in Shunting, Activating or Deactivating Control.

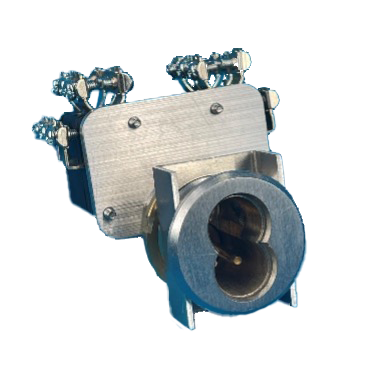

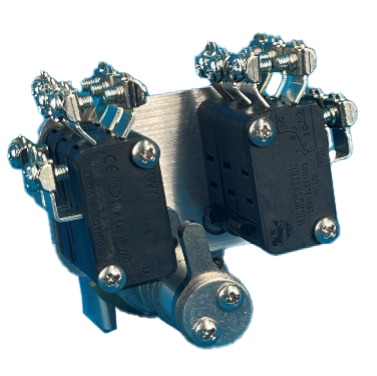

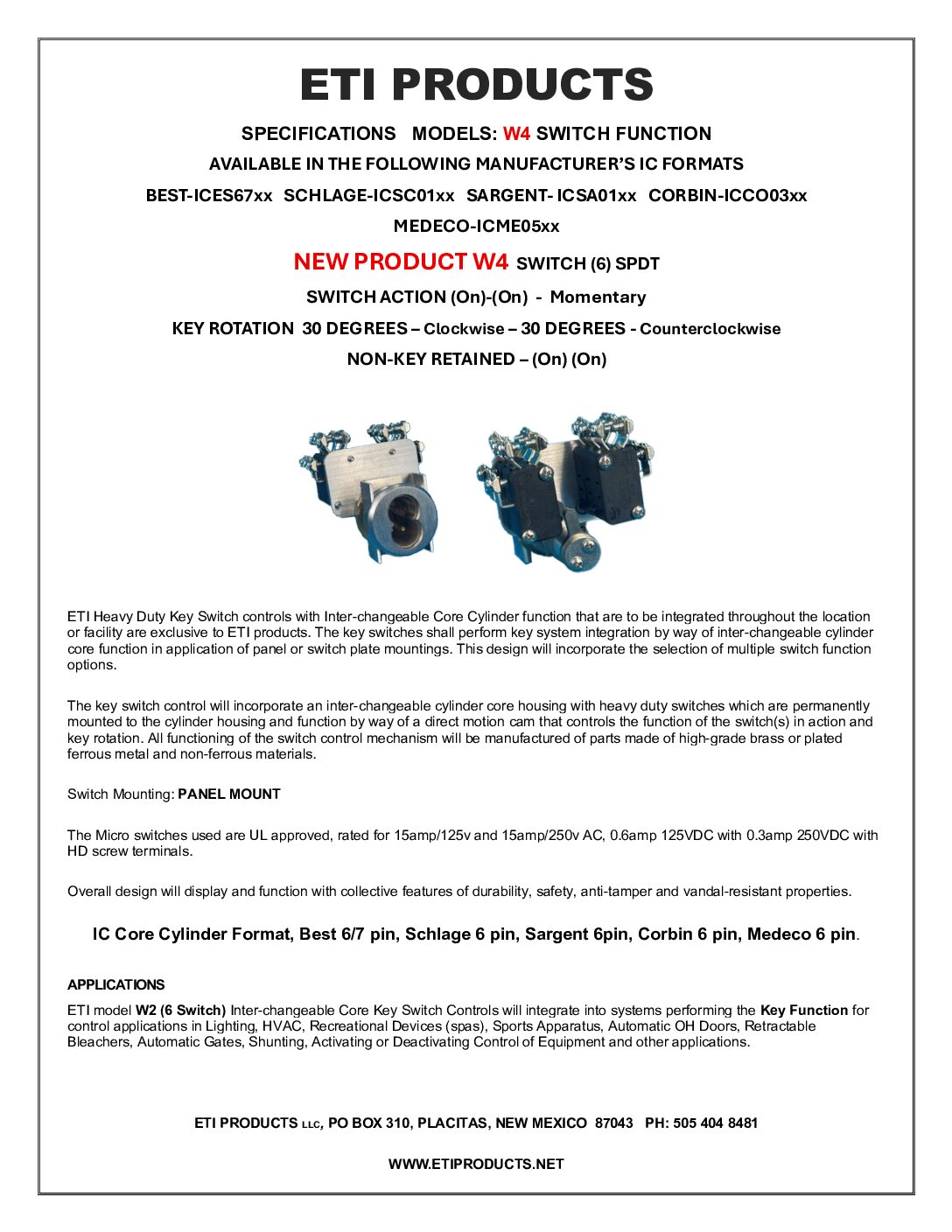

W4
AVAILABLE IN THE FOLLOWING MANUFACTURERS' IC FORMATS
BEST-ICES67B1PBDG SCHLAGE-ICSC01B1PBDG SARGENT- ICSA02B1PBDG CORBIN-ICCO03B1PBDG MEDECO- ICME05B1PBDG
SWITCH TYPE
(6) SPDT
(Single pole - Double Throw)
CONTACT RATING
16A 125/ 250VAC, 0.6 125 VDC-0.3 250VDC
SWITCH ACTION
Momentary
on-on
FINISHES
BHMA 626
KEY ROTATION
30° Clockwise-on,
30° Counter Clockwise-on
NON KEY-RETAINED
PANEL MOUNT PREPARATION
Large Cam Lock Style 1 5/32″dia by .950″ (flat width) Double “D” Design
APPLICATION W4
ETI model W4 Inter-changeable Core Key Switch.Control s will integrate into systems performing the Switch Action of Momentary off- center with 30° rotation clockwise-on and counter clockwise-on with SPDT Switch 15amp Contact Rating, Design for Panel Mounting integration in control applications of Activating or Deactivating Control Equipment and other applications.
NEW PRODUCTS > PRINTABLE PAGES FOR DOWNLOAD AND USE
AW1/AWJ1
AW2/AWJ2
B1PBDG
C2DG

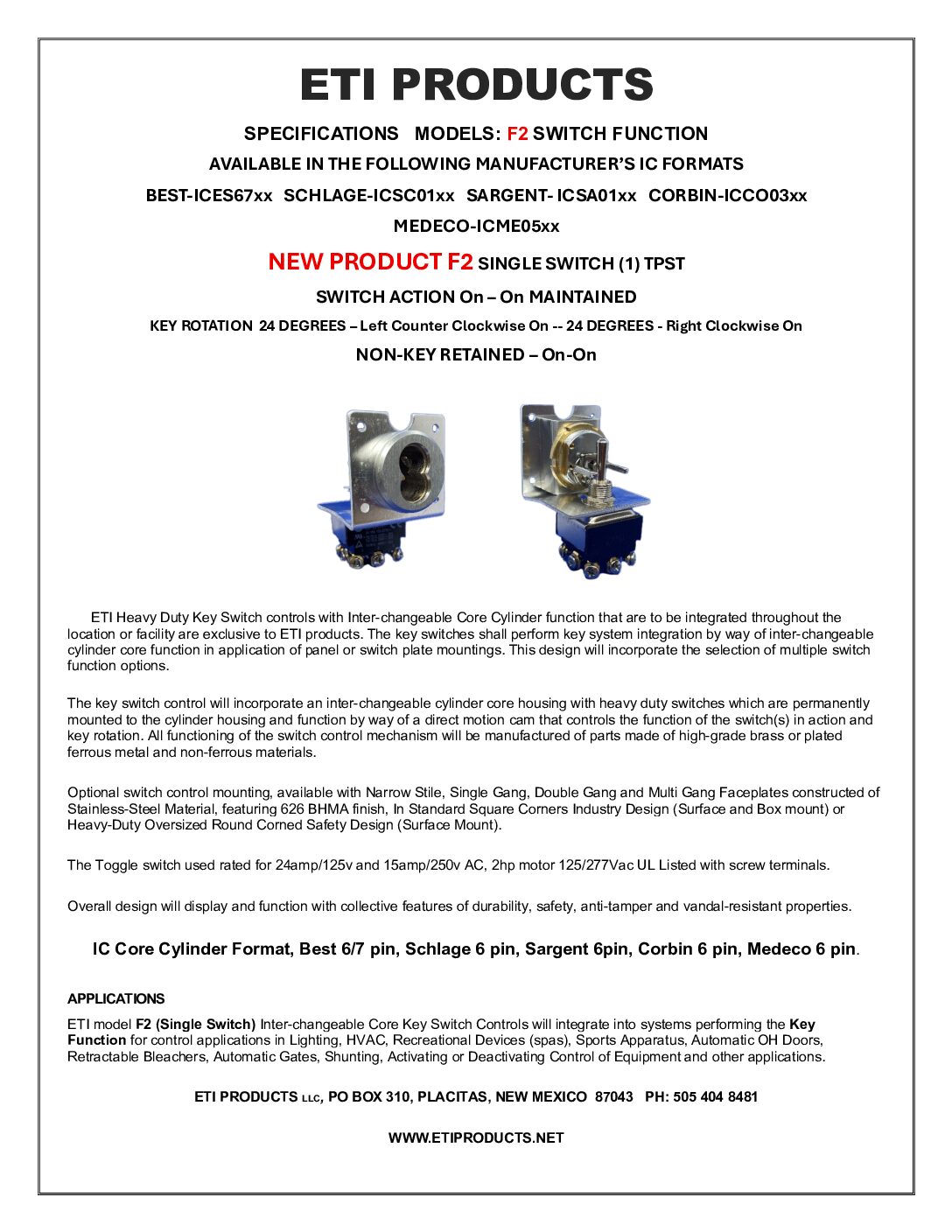

F2
