PRODUCTS > SEQUENCE LOCKS
The key retaining device is an effective tool for improving the control of keys. With a sequence key retaining device, a release key is inserted into the retaining device and rotated. The rotation will allow removal of retained key and in turn traps the release key. The release key remains trapped until the retained key is returned and rotated. After this action, the release key can be removed, with the retained key being trapped.
These sequence retaining devices establish accountability for important keys (ex: master keys, emergency bypass keys, access control, safety lockout, etc.) and dramatically reduce both human mistakes and risk exposure for higharchy level keys. This key control of put and take system acts as a mechanical sign-out sheet when active.
Interchangle Core Large Format – Schlage®
Features
- Accepts All Manufacturers Large Format Schlage®
- Design Interchangeable Cores
- Effective Mechanical Key Control Device
- Solid Aircraft Aluminum Machined Housing
- Heavy Duty Rack & Gear Sequence Drive Mechanism
- Machined T-Slot Mounting Screws By Insert Cores
- Concealed Front Mounting Screws By Inserted Cores
- Wall Mounting By Recessed T-Slot Holes (2)
Specifications
CASE: Precision Machined from solid aircraft grade aluminum stock
SIZE: 2.25 inches high x 4.5 inches long x 2.5 deep
WEIGHT: 2lbs.
FINISH: Satin Aluminum
MOUNTING: Concealed threaded machine screws
OPTION: Gang Mounting Brackets (4 Place Vertical)

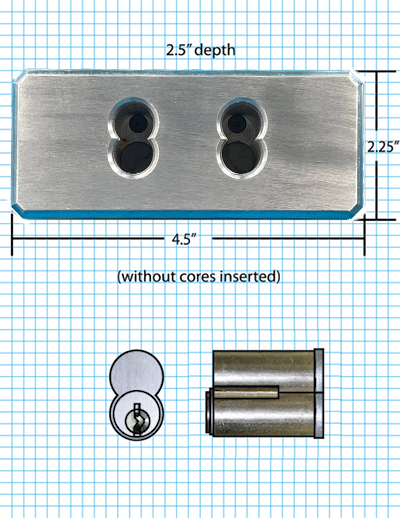

Interchangeable Core Small Format. Best®
Features
- Accepts all manufactures small format interchangeable cores 6 or 7 pin
- Effective mechanical key control device
- Solid aircraft aluminum machined housing
- Heavy duty rack and gear sequence drive mechanism
- Machined T-Slot mounting system
- Concealed front mounting screws by inserted cores
- Wall mounting by recessed T-Slot holes (2)
Specifications
CASE: Precision Machined from solid aircraft grade aluminum stock
SIZE: 2.25 inches high x 4.5 inches long x 2.5 deep
WEIGHT: 2lbs.
FINISH: Satin Aluminum
MOUNTING: Concealed threaded machine screws
OPTION: Gang Mounting Bracket (4 place)
Key N Knob Cylinder
Features
- Accepts Schlage® design Key N Nnob Cylinders
- Effective mechanical key control device
- Solid aircraft aluminum machined housing
- Heavy duty rack and gear sequence drive mechanism
- Machined T-Slot mounting system
- Mounting system with high security screws
- Wall mounting byway of recessed T-Slot holes (2)
Specifications
CASE: Precision Machined from solid aircraft grade aluminum stock
SIZE: 2.25 inches high x 4.5 inches long x 2.5 deep
WEIGHT: 2lbs.
FINISH: Satin Aluminum
MOUNTING: Concealed threaded machine screws
OPTION: Gang Mounting Bracket (4 place)

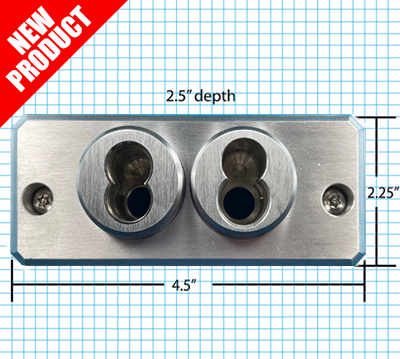

Interchangeable Core Combo Large Format Cylinder Design
Corbin, Medeco, Sargent, Yale
Features
- Available in 4 Large Format IC Core Formats
- Effective mechanical key control device
- Solid aircraft aluminum machined housing
- Heavy duty rack and gear sequence drive mechanism
- Machined T-Slot mounting system
- Wall mounting byway of recessed T-Slot holes (2)
Specifications
CASE: Precision Machined from solid aircraft grade aluminum stock
SIZE: 2.25 inches high x 4.5 inches long x 2.5 deep
WEIGHT: 2lbs.
FINISH: Satin Aluminum
MOUNTING: 2 Security machine screws
OPTION: Gang Mounting Bracket (4 place)

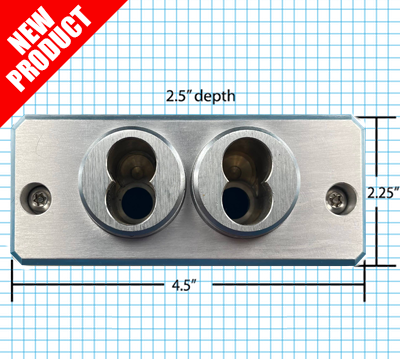

Interchangeable Core Combo Small /Large Format Cylinder Design
Best/Corbin, Best/Medeco, Best/Sargent, Best Schlage, Best/Yale
Features
- Available in 5 Small/Large Format IC Core Formats
- Effective mechanical key control device
- Solid aircraft aluminum machined housing
- Heavy duty rack and gear sequence drive mechanism
- Machined T-Slot mounting system
- Wall mounting by recessed T-Slot holes (2)
Specifications
CASE: Precision Machined from solid aircraft grade aluminum stock
SIZE: 2.25 inches high x 4.5 inches long x 2.5 deep
WEIGHT: 2lbs.
FINISH: Satin Aluminum
MOUNTING: 2 Security machine screws
OPTION: Gang Mounting Bracket (4 place)
OPERATION
Retained Key in key retaining device waiting for any authorized user to remove it when needed
An authorized user inserting their personal identified release key.
User rotates release key and the higher level retained key is now ready for removaI.
Authorized user removes the previous secured high level key and can use as it is needed
Authorized user key is retained
(held/trapped) until the high level key is returned to its secure position.
ARCHITECTS/ENGINEERS SPECIFICATIONS
ETI sequence key retaining devices are to be integrated throughout the location or facility and are exclusive to ETI Products. The key retaining device shall be used for all key control activities which require remote or special location access by authorized personnel. The device shall be designed whereby rotational retention is activated and controlled with a sequence m echanism which uses rack & gear function for engagement of cylinders. The lock body must be of solid machined aircraft aluminum which incorporates an interlock T-Slide bracket for wall or plate mounting. Final body mounting must use concealed fasteners and/or high security fasteners specified/approved by ETI Products. Overall design will display and function with the collective features of durability, safety, anti-tamper and anti-vandal. Optional colors may be used in aiding in the identification of key control and its application for user and area control.
